Tow Truck Winch - 20,000 LB

Designed specifically for people wanting a hoist style of winch suited to loading equipment on and off trailers and trucks. These winches are built with advanced features to ensure the best performance for this type of application.

Sherpa have been been designing and building winches for many years and what makes them different from others is that they listen to customer requests and feedback and continually look to improve. Customers have been asking for a powerful, reliable and simple to operate winch that will haul containers, machinery and equipment on and off their flat bed trucks, tilt trays and custom trailers with ease.

The Sherpa Tow Truck winch is built with a large frame and oversized drum which not only ensures the ultimate in strength, but also means rope or cable can be wound onto the winch without the worry of uneven loading or over spooling. This makes winching fast and carefree so the user can focus on the load and not what the winch is doing.

This winch is built with a hoist style braking design which has the brake incorporated into the motor. The brake is designed to be fail safe meaning mechanical springs automatically apply the braking force on loss of power supply. When the operator engages the winch, the brake is electrically released. This type of brake design is a necessity for people towing loads similar to as seen in hoisting applications. Common 4x4 winch brakes will not handle lowering of loads and will quickly wear and be damaged. The incorporation of a hoist style brake into the motor resolves this common shortfall. The braking design in this winch is extremely powerful as the brake applies on the input side of the high reduction planetary gearbox and users can expect the brake to hold high loads with ease.

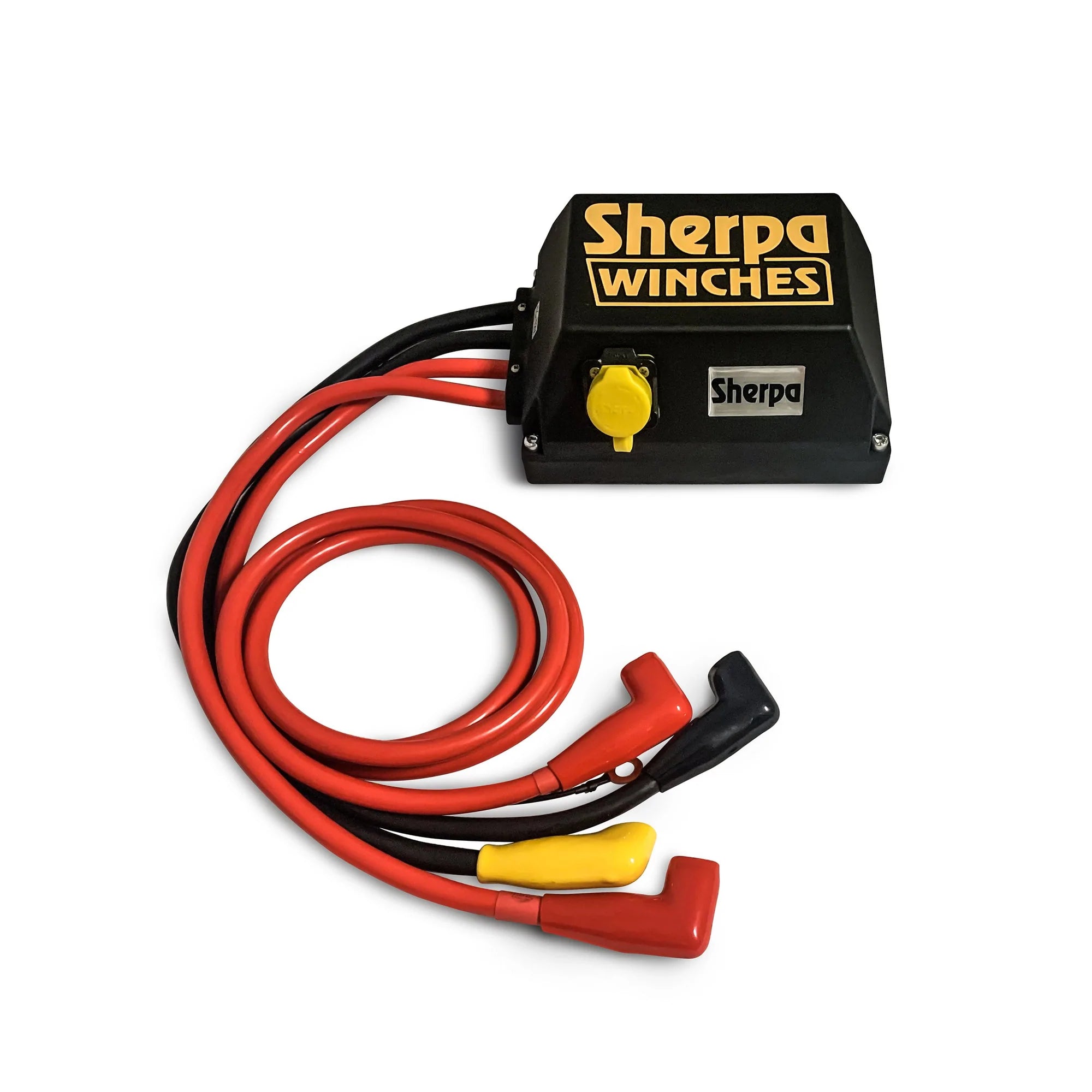

As with all Sherpa winches, this winch comes with a genuine Albright International solenoid pack ensuring it's waterproof and the most reliable on the market.

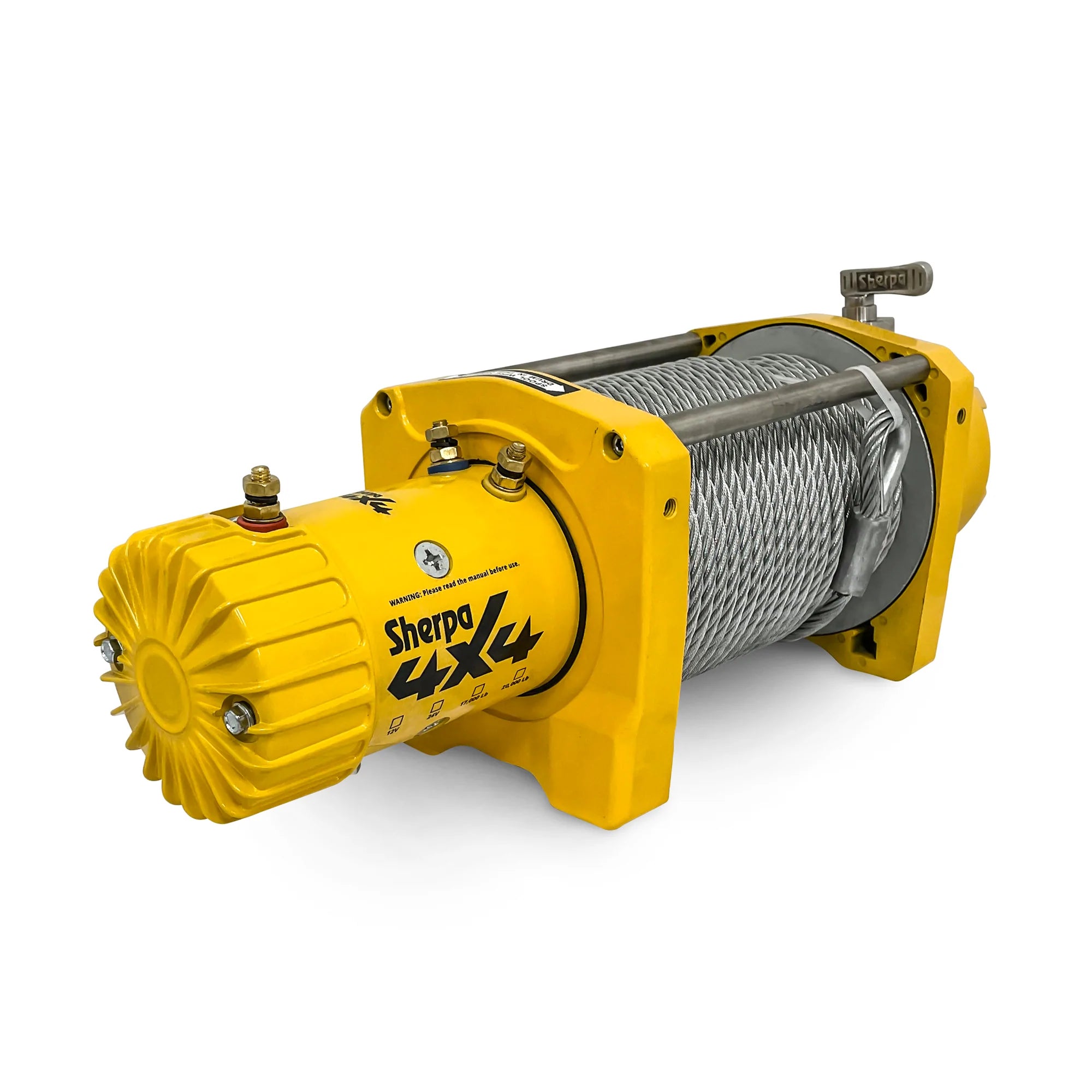

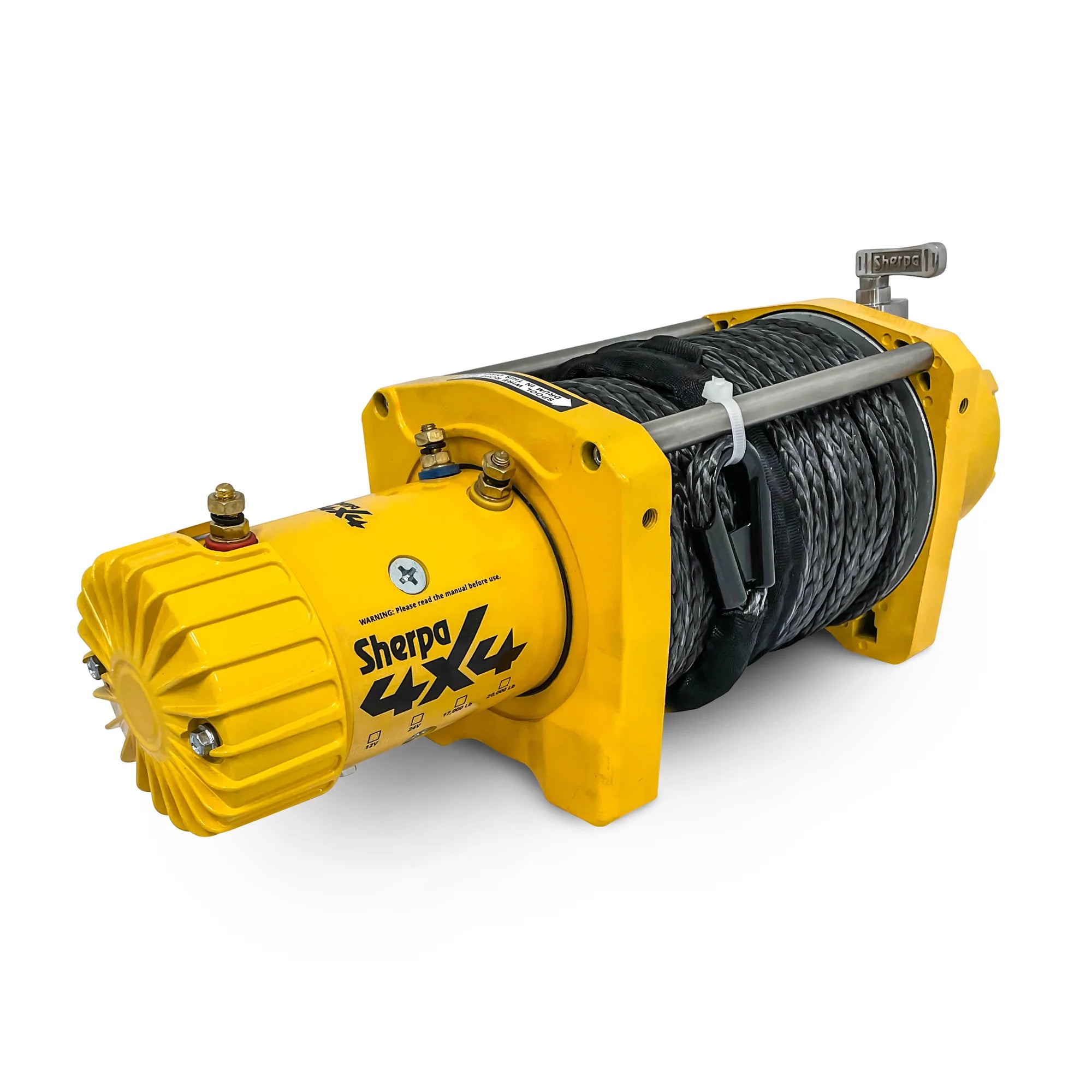

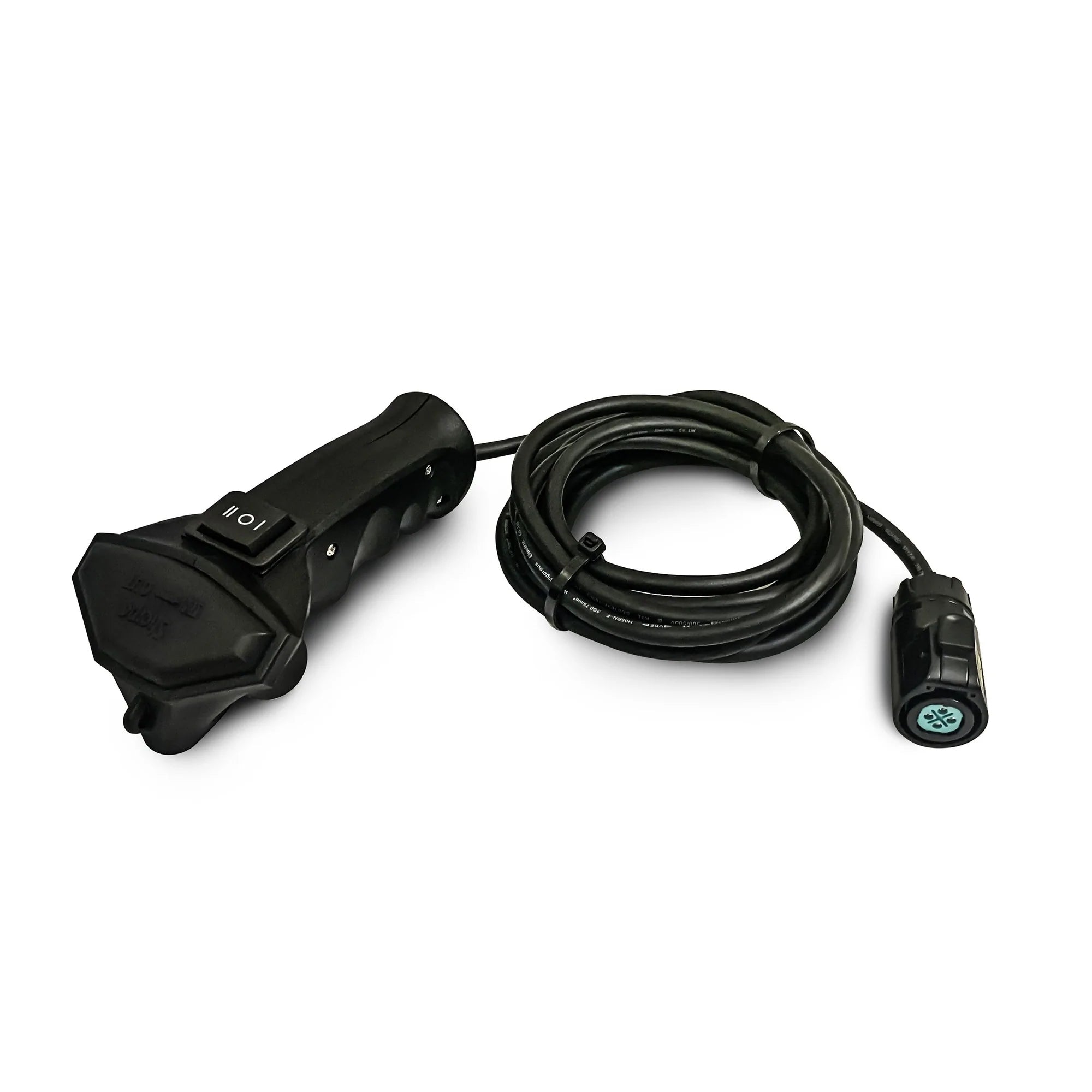

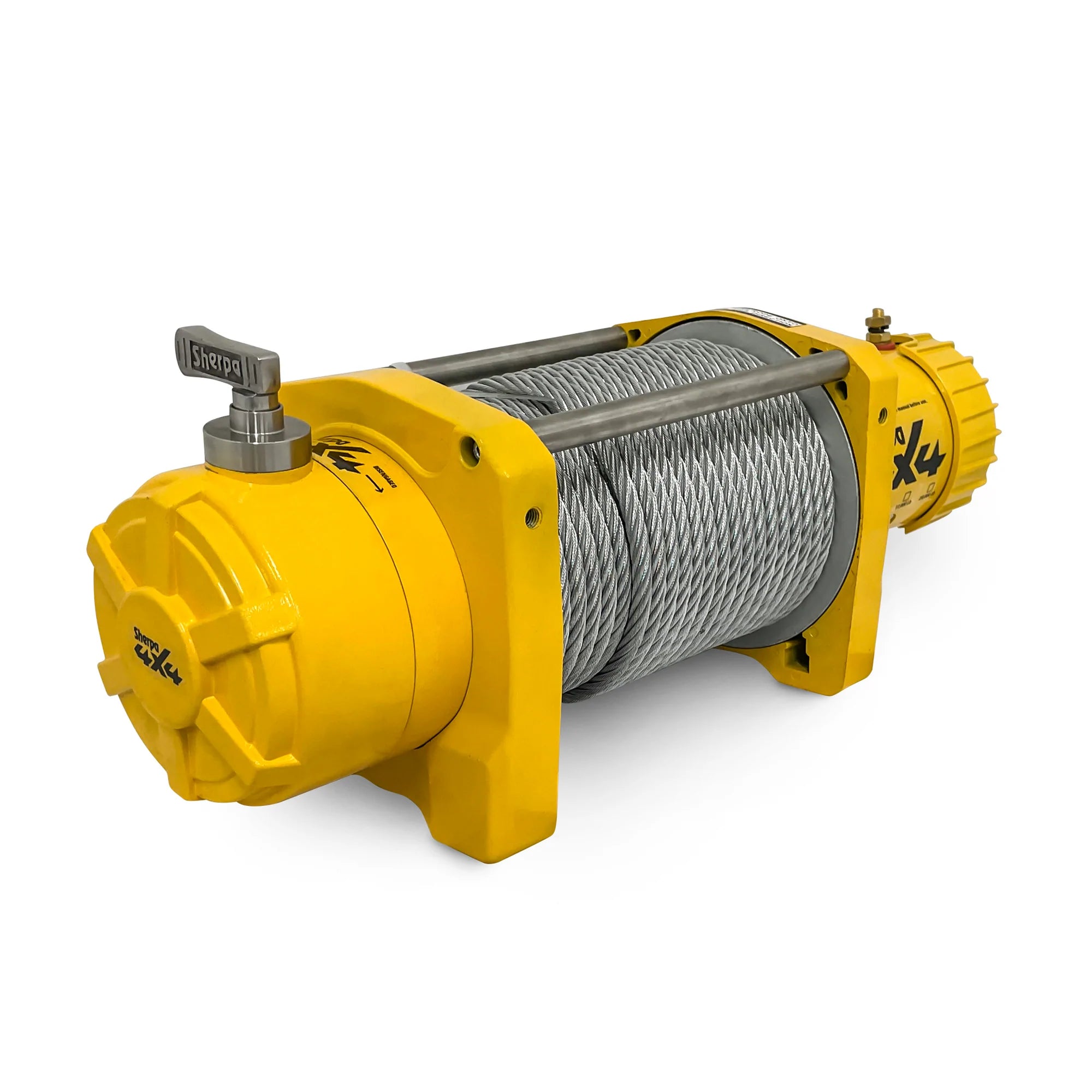

The winch is supplied with 28m of synthetic rope or 28m of steel cable and can be built with 12V or 24V motor and control option. A optional wireless remote control kit is also available and will work with this winch.

Sherpa Tow Truck winches are not recommended for applications that would see the winch submerged in water. Whilst the winch has a IP66 rating and is suitable for outdoors installations in the full elements, we do not recommend the winch be submerged as water ingress can impact the electric brake performance.

Warning, whilst this is a 'Hoist' style of winch, this winch is not certified or recommended for overhead hoisting applications. The winch features a single brake design without redundancy and is unlikely to conform to hoisting winch standards. Users should always use extreme caution when winching and hoisting loads and be prepared for a brake failure and load shift.
