SKU: SW12V10LB28SR

'THE BRUMBY' - 10,000LB HIGH SPEED WINCH

Sale price$1,539.00

Voltage & Cable/Rope: 12V - 28m Rope
DESCRIPTION

The 'Brumby' is Sherpa's fast, high speed winch, ideal for quick recoveries and competition use. Incorporating a higher horse power electric motor and new gearbox ratio this unit still delivers exceptional power with a 10,000lb rating as well as impressive line speeds. Supplied with Albright International electrics and the standard Sherpa 5yr warranty, this unit offers a great alternative to expensive competition winches on the market and is perfect for special application uses needing higher speeds.

Specifications Value
Rated Line Pull 10,000lb (4,545kg)
Motor 8.9hp series wound (12V or 24V options)
Gear reduction ratio 105:1 3 stage planetary gearbox
Rope

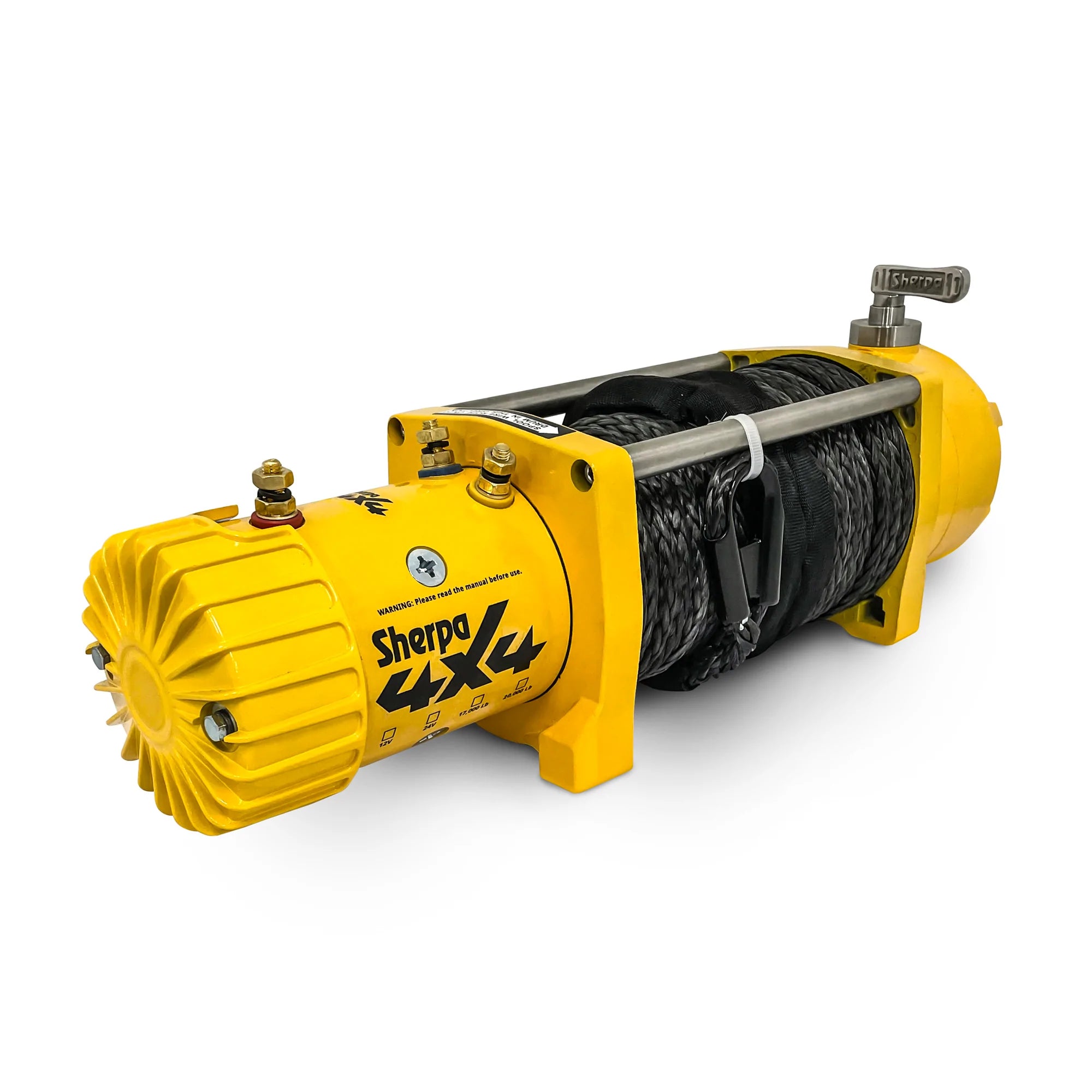

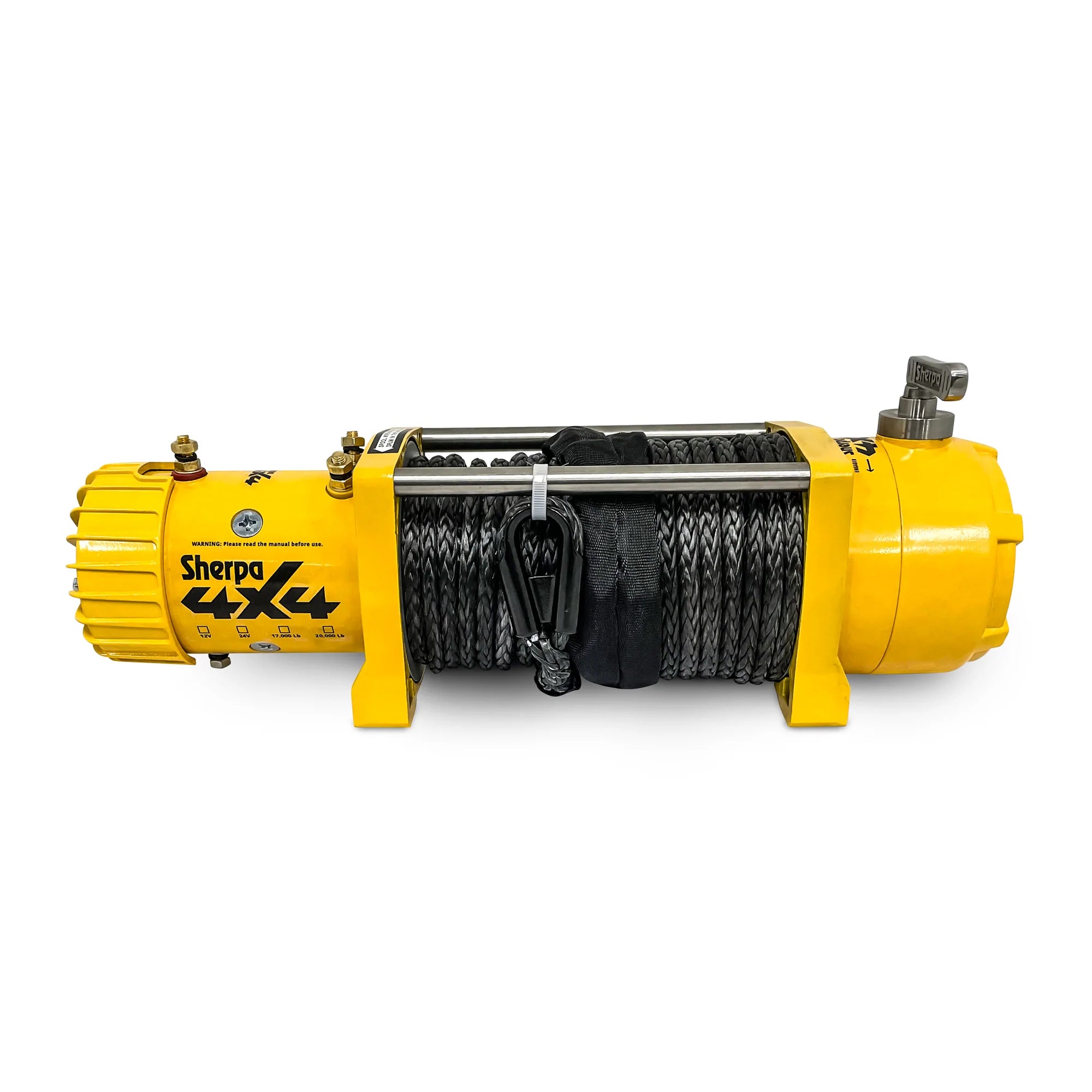

28m of 9.5mm synthetic rope rated to 18,000 lb minimum braking load

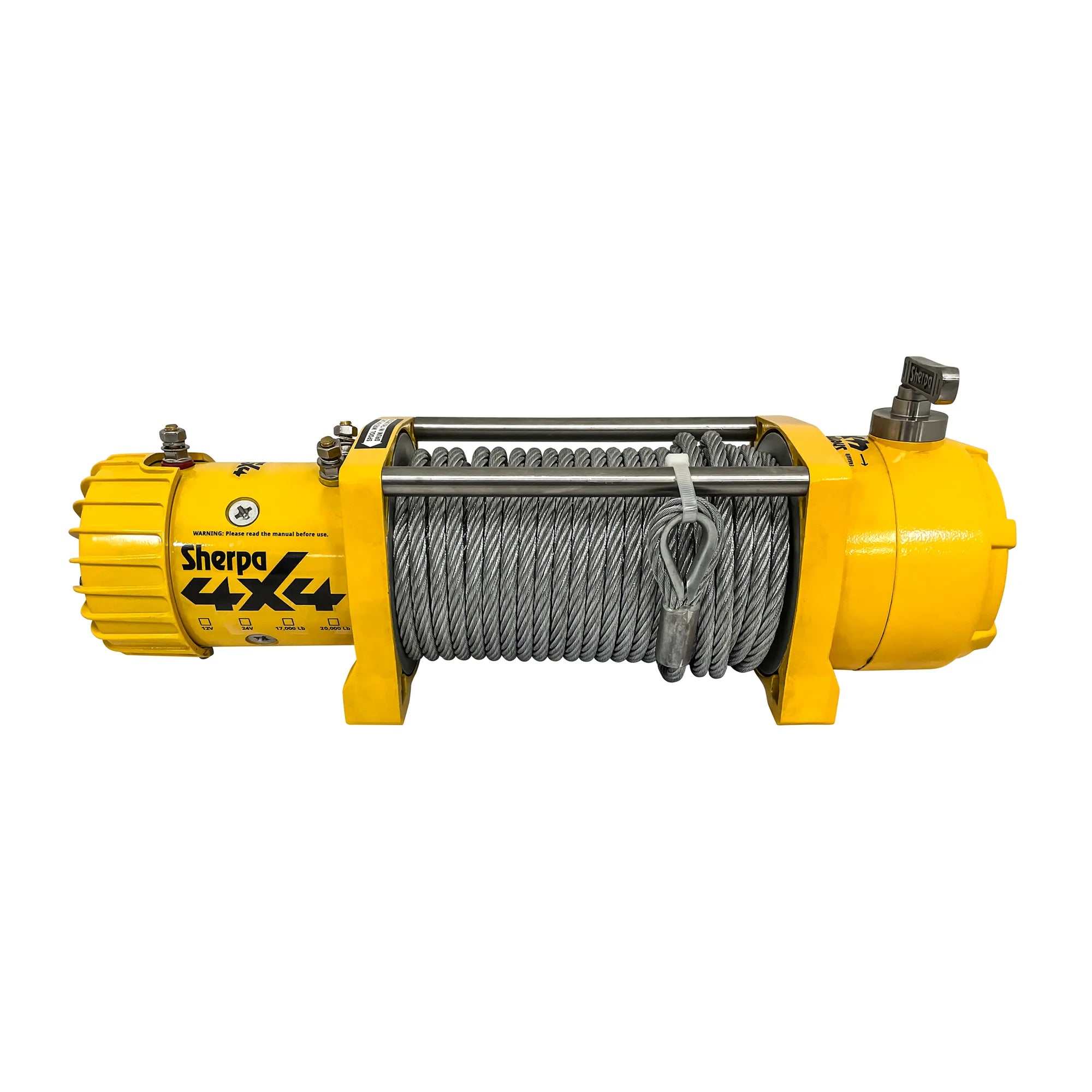

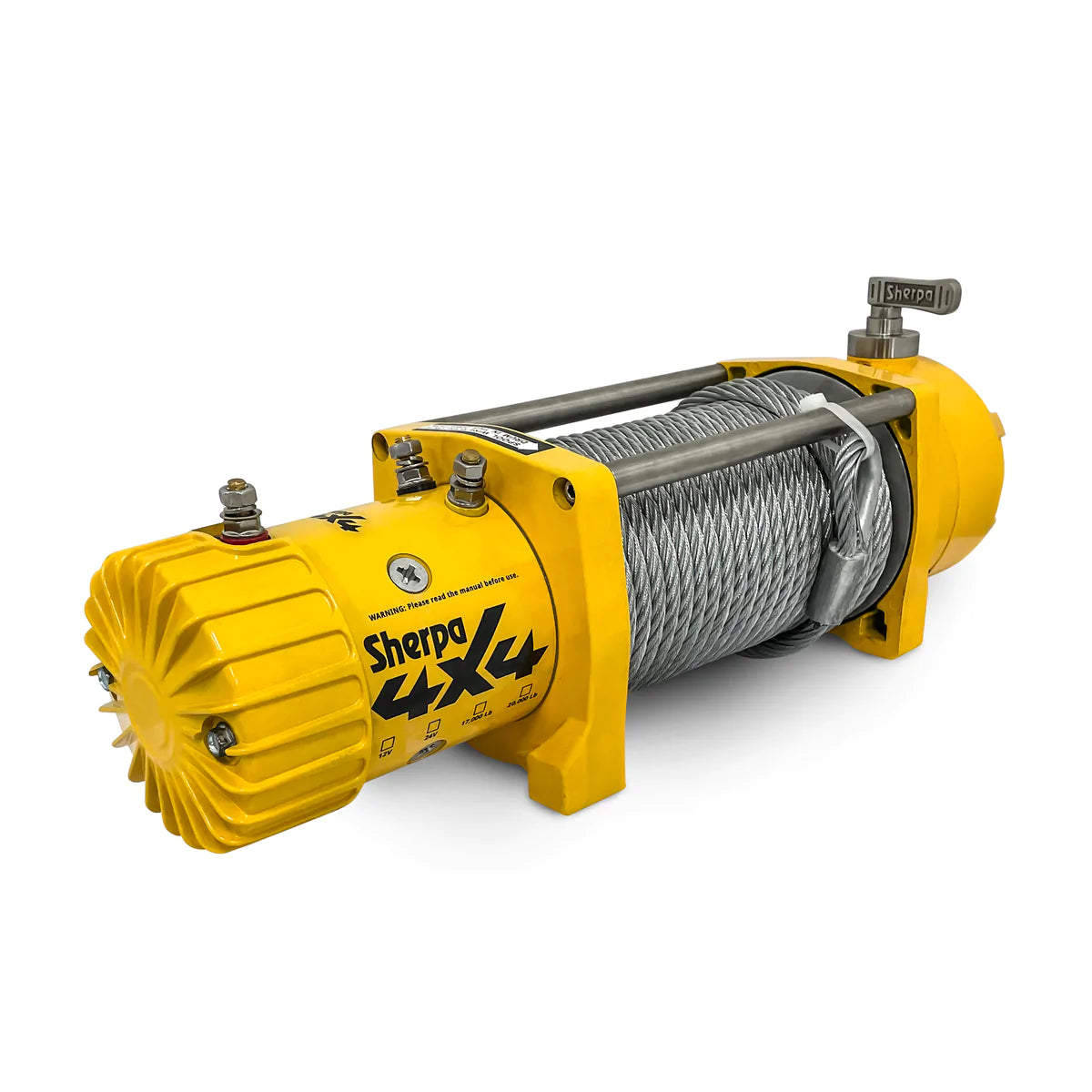

28m of 10mm steel cable

Mounting Bolt Diameter 11.2mm
Drum Size (Dia x Length) 64mm x 224mm
Mounting Bolt Pattern 254mm x 114.3mm
Clutch

180 degree turn, free spooling, slide ring gear

6 Position indexible to users requirements

Brake Automatic in gearbox
Solenoid Albright International Heavy Duty 800 amp
Duty Cycle Intermittent
Hawse Polished aluminium hawse
Battery Leads 1.8m long
Hand Remote Lead 3.5m long
Certification CE - designed to meet European standards
Water Ingress Rating IP68
Warranty 5 Years

    The 'Brumby' is Sherpa's fast, high speed winch, ideal for quick recoveries and competition use. Incorporating a higher horse power electric motor and new gearbox ratio this unit still delivers exceptional power with a 10,000lb rating as well as impressive line speeds. Supplied with Albright International electrics and the standard Sherpa 5yr warranty, this unit offers a great alternative to expensive competition winches on the market and is perfect for special application uses needing higher speeds.

    Specifications Value
    Rated Line Pull 10,000lb (4,545kg)
    Motor 8.9hp series wound (12V or 24V options)
    Gear reduction ratio 105:1 3 stage planetary gearbox
    Rope

    28m of 9.5mm synthetic rope rated to 18,000 lb minimum braking load

    28m of 10mm steel cable

    Mounting Bolt Diameter 11.2mm
    Drum Size (Dia x Length) 64mm x 224mm
    Mounting Bolt Pattern 254mm x 114.3mm
    Clutch

    180 degree turn, free spooling, slide ring gear

    6 Position indexible to users requirements

    Brake Automatic in gearbox
    Solenoid Albright International Heavy Duty 800 amp
    Duty Cycle Intermittent
    Hawse Polished aluminium hawse
    Battery Leads 1.8m long
    Hand Remote Lead 3.5m long
    Certification CE - designed to meet European standards
    Water Ingress Rating IP68
    Warranty 5 Years
