RJ45 PASS-THROUGH ADAPTOR - TYPE 6 (WHITE)

The XRS-RJ45R6 and XRS-RJ45W6 universal pass-through adaptors allow for an XRS™ Connect controller microphone to be integrated into a number locations and in a variety of vehicles, providing a neat and professional finish. Ideally suited for applications including agriculture machinery, 4WD vehicles, heavy vehicles or any fitment on a flat surface.

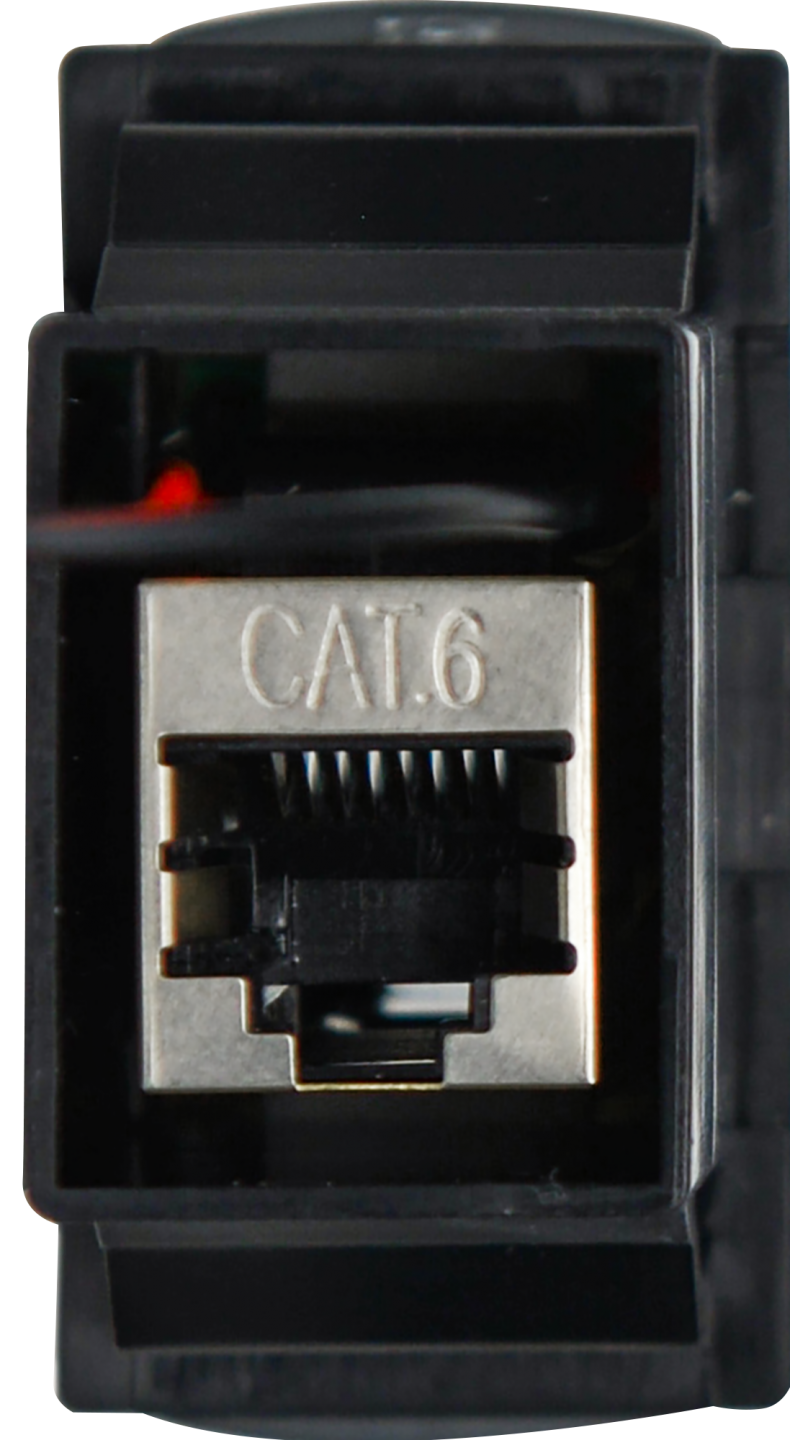

Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.

The existing range of XRS-RJ45 pass-through adaptors allows for an XRS™ Connect controller microphone to be integrated directly into a range of blank OEM switch locations, providing a neat and professional finish.

Refer to the compatibility matrix for specific models..

Also compatible with other UHF CB radios using an 8 Pin RJ45 Connection.

Key Features

• Suits XRS™ Connect UHF CB Radios
• CAT.6 compliant, fully-shielded housing
• White LED Back-light
• Ideally Suited for Universal Applications
• Made in Australia
• Two wire installation: Connect the red wire to the existing 12v dash light circuit and the black wire to the negative circuit.

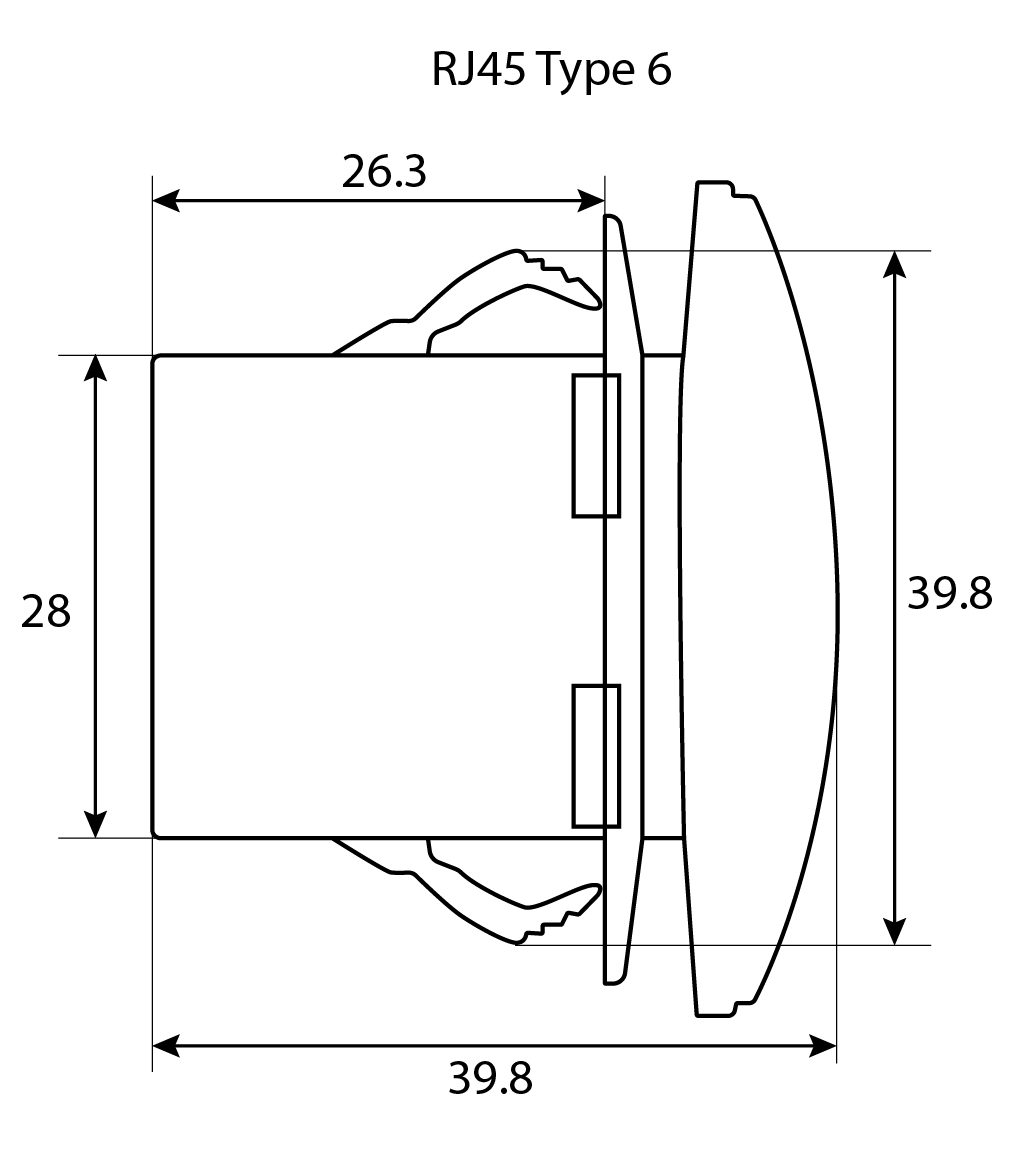

• Total mounting depth excluding cable exit: 26mm
• Switch cut-out size required: 21mm x 37mm (with a panel thickness of 2.0mm)

In the box

• Adaptor Only
