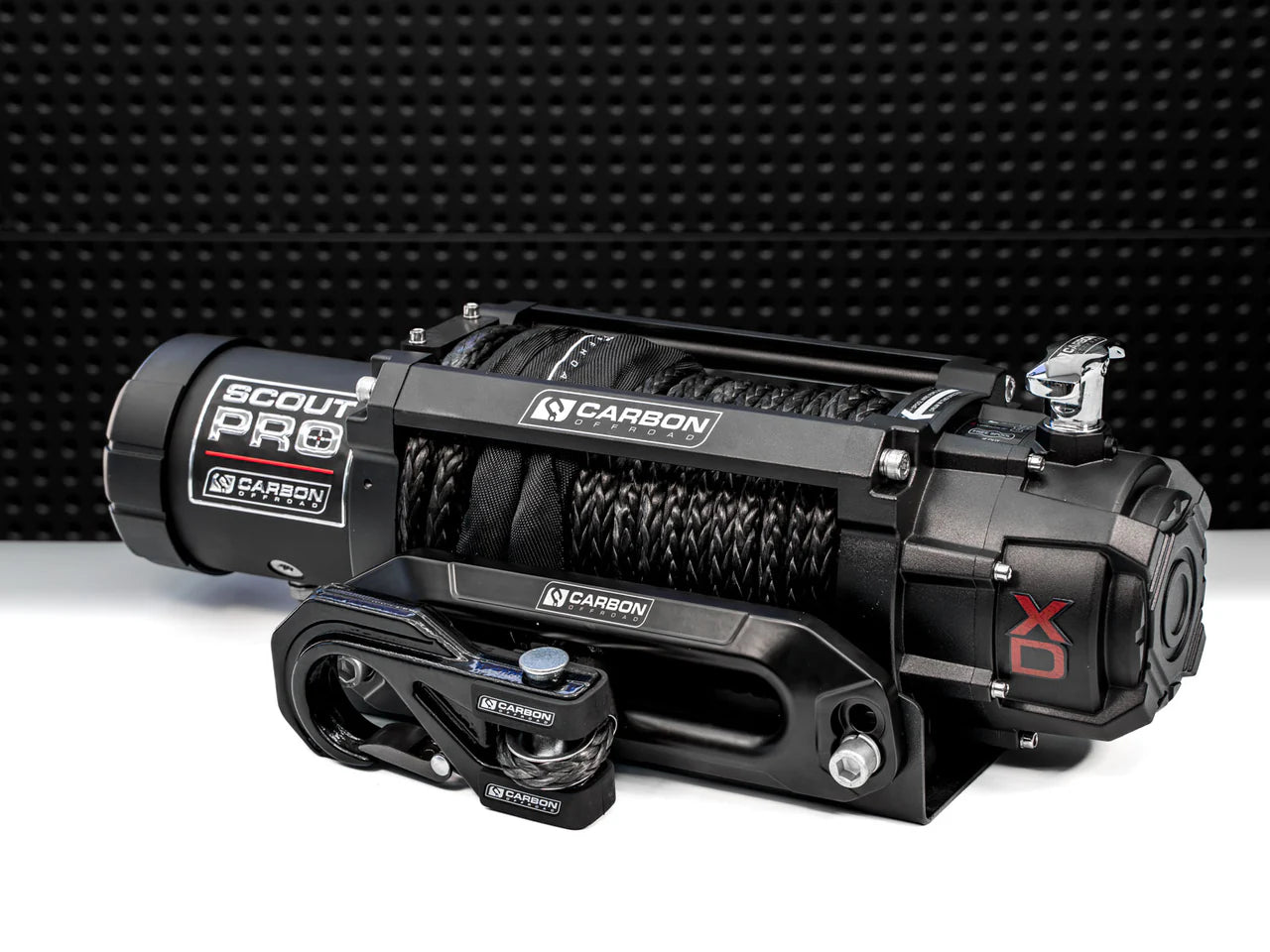

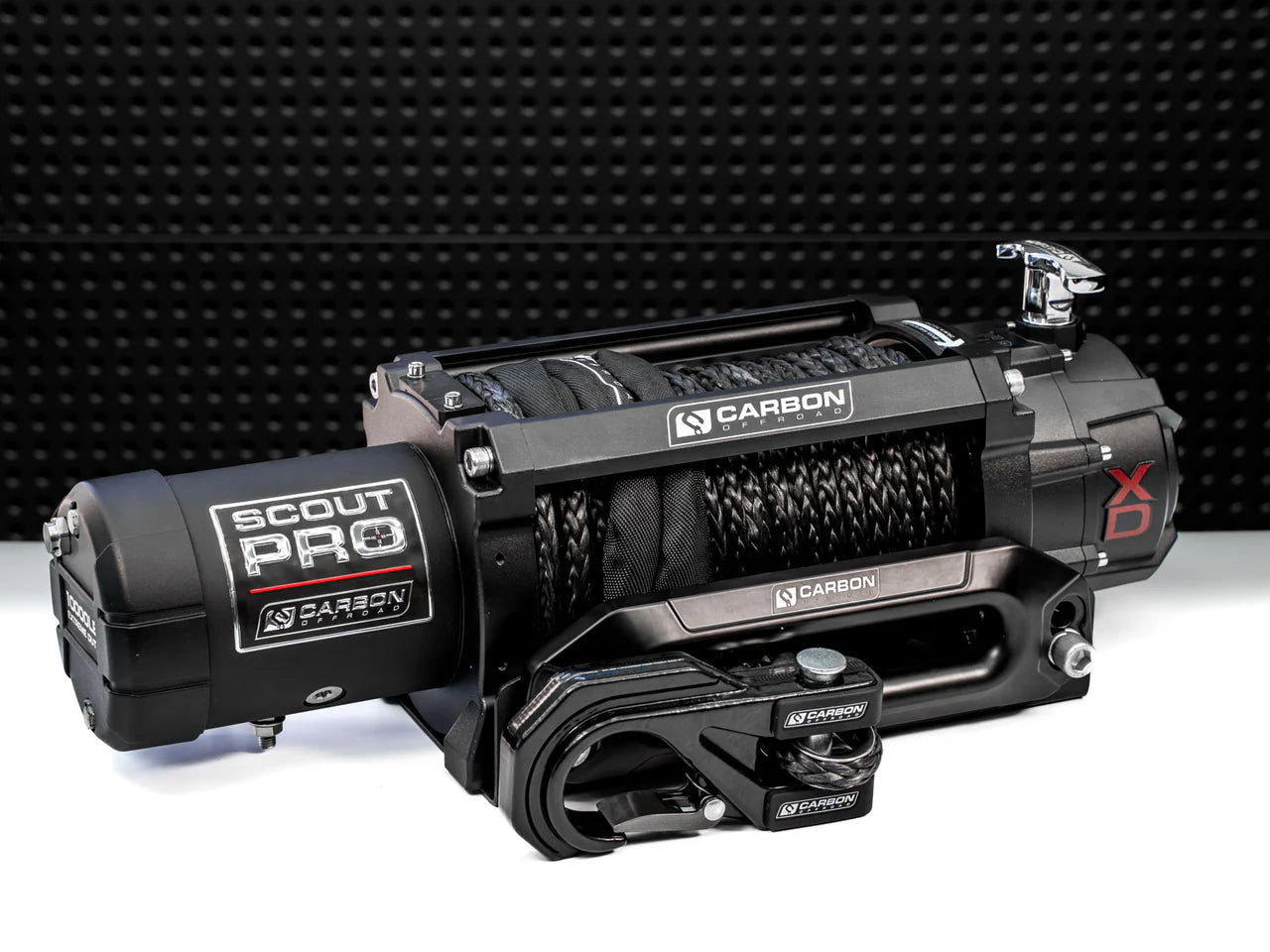

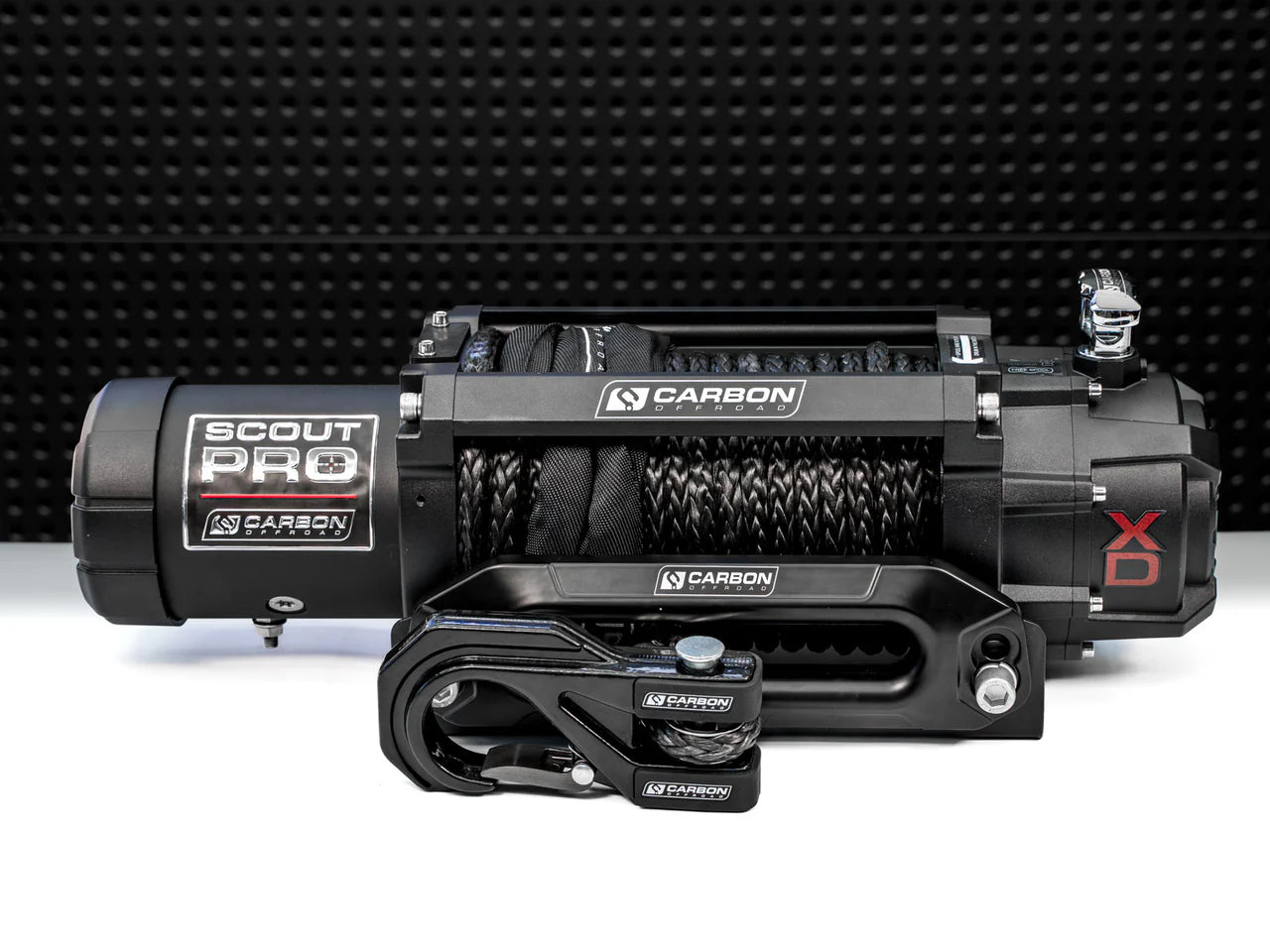

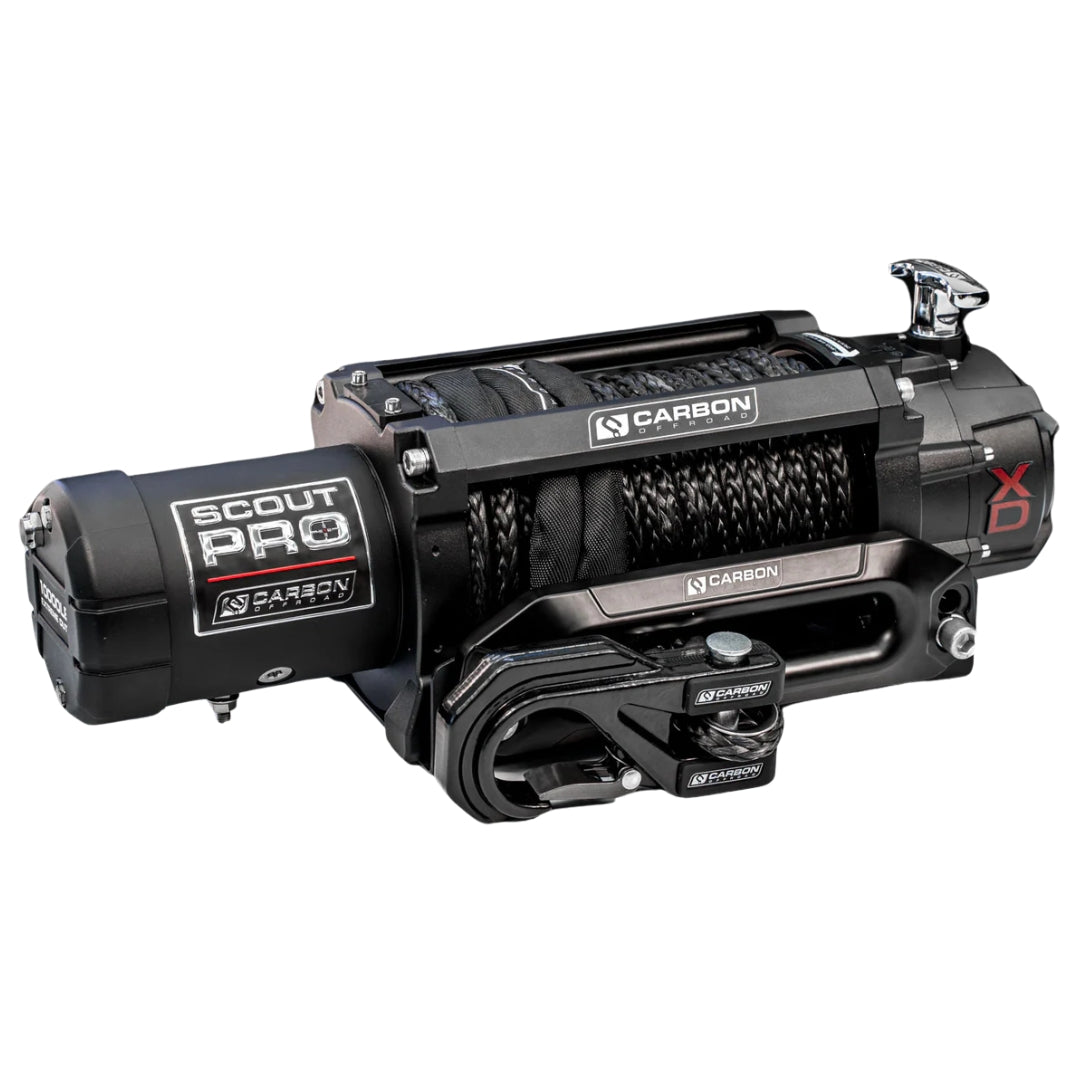

Carbon Scout Pro - 10000lb Winch V3 - Black

The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.

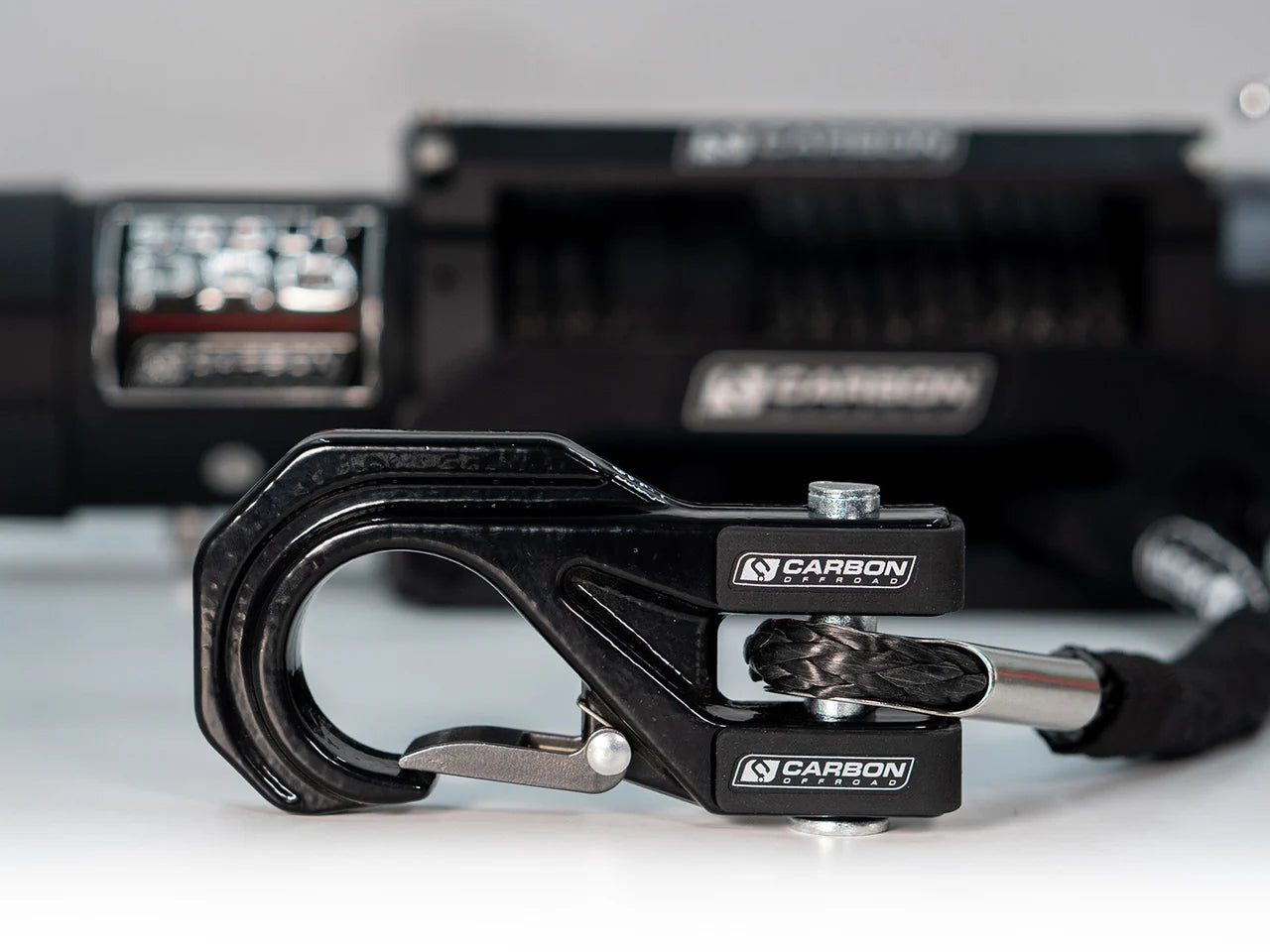

With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.

Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.

Technical Features

• Part number: CW-XD10
• Rated line pull: 10000 lbs, (4536kg) single-line
• Motor: 12V DC 6 HP series wound motor (24V option available)
• Remote Control: Wired with 3.7m lead
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary
• Gear Ratio: 179:1
• Rotating Ring Gear
• Brake: Automatic brake in the motor bracket
• Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty

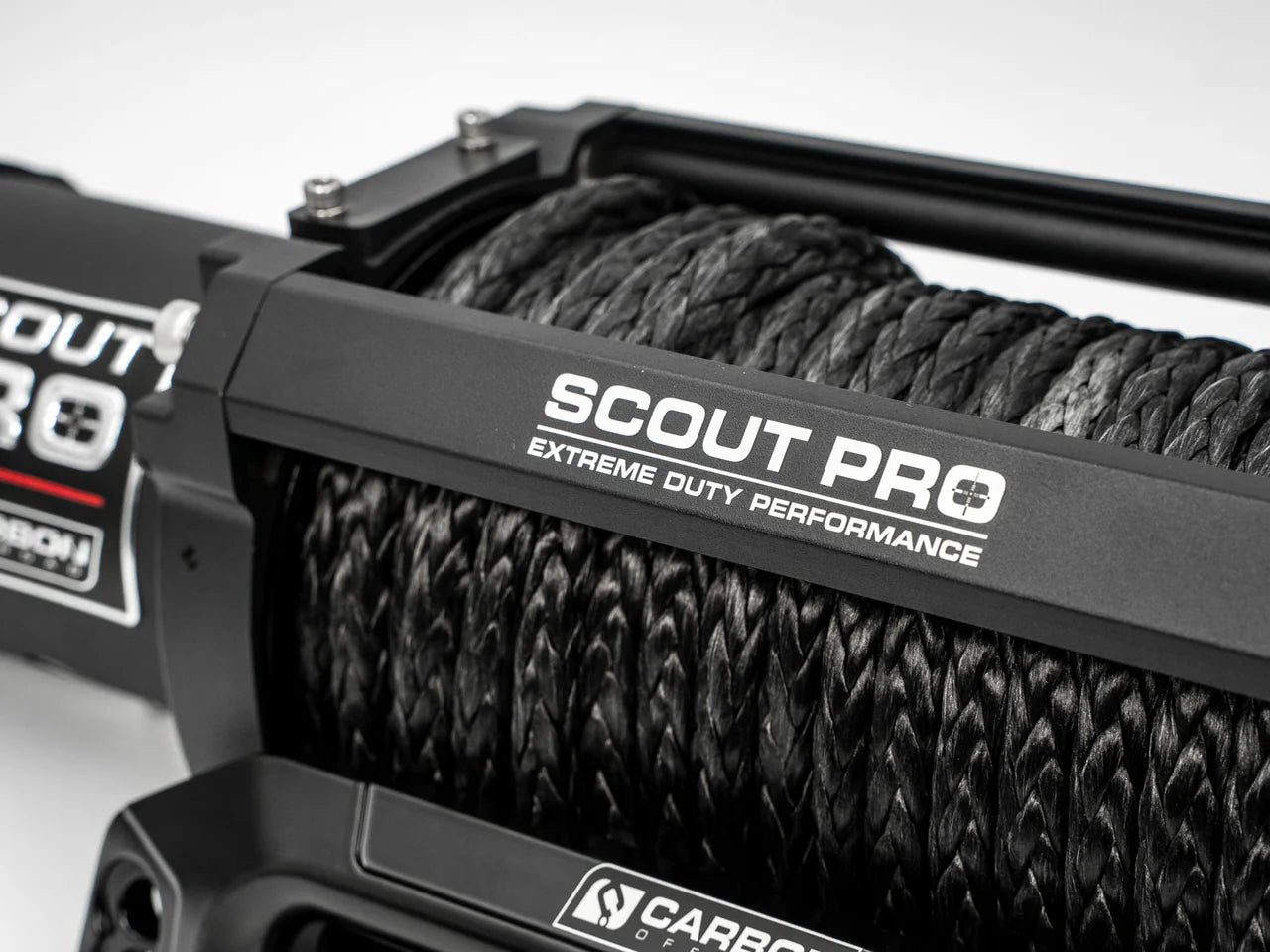

• Synthetic Rope: 24m x 9mm diameter

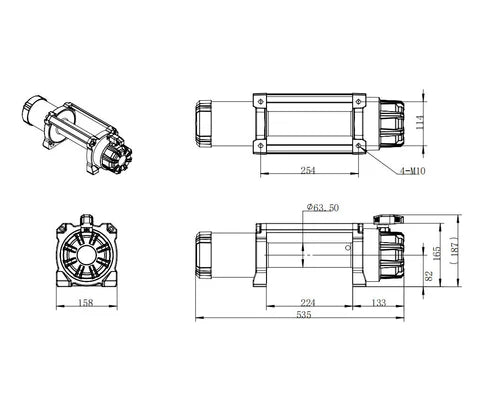

• Drum Diameter/Length: 63.5mm x 224mm
• Mounting Bolt Pattern: 254mm x 114.3mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 535 x 158 x 187mm
• Packing Dimensions (L x W x H): 580 x 200 x 220mm
• Winch weight with synthetic rope attached: 19.0kg
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg

Performance Specs
