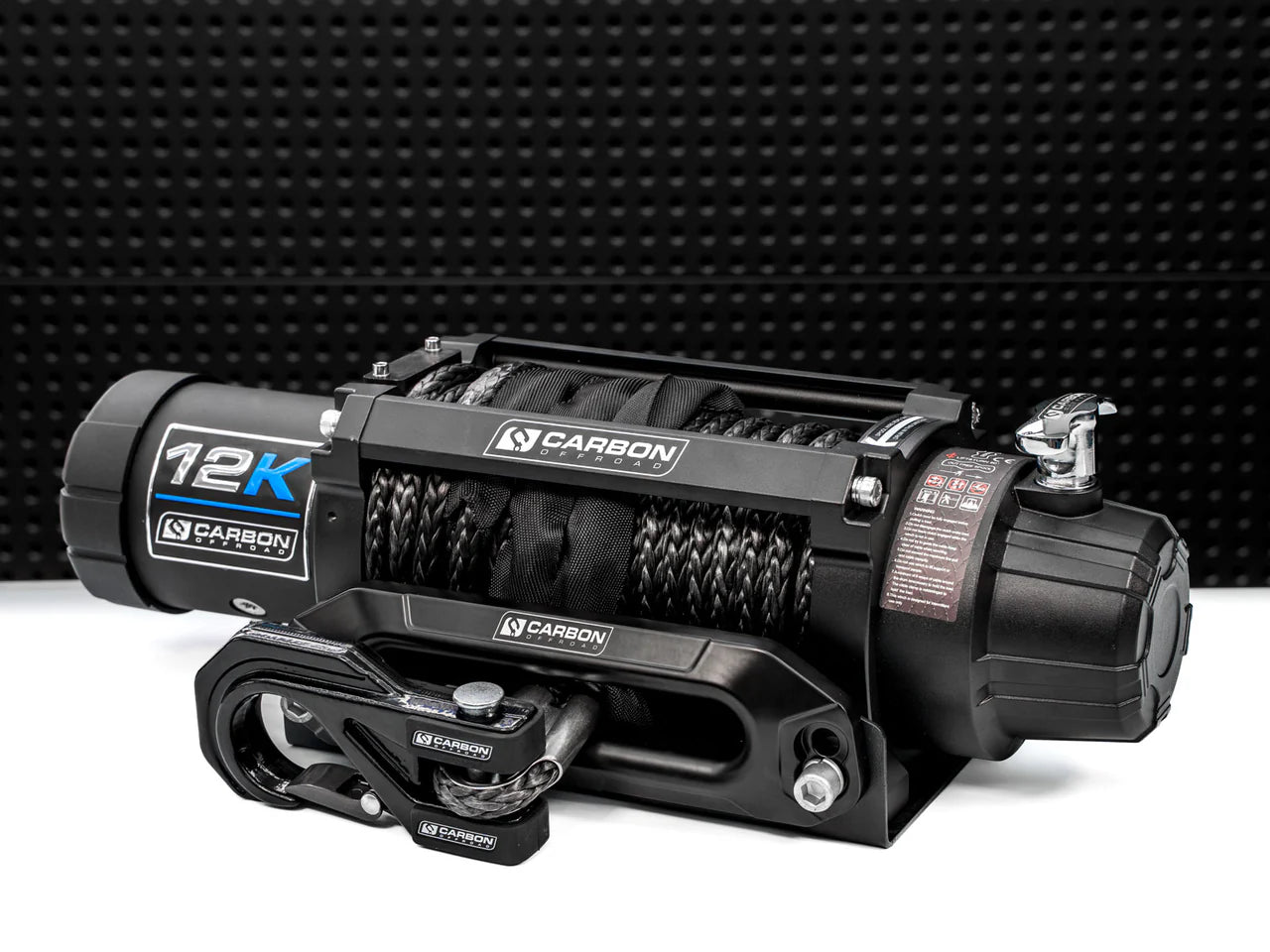

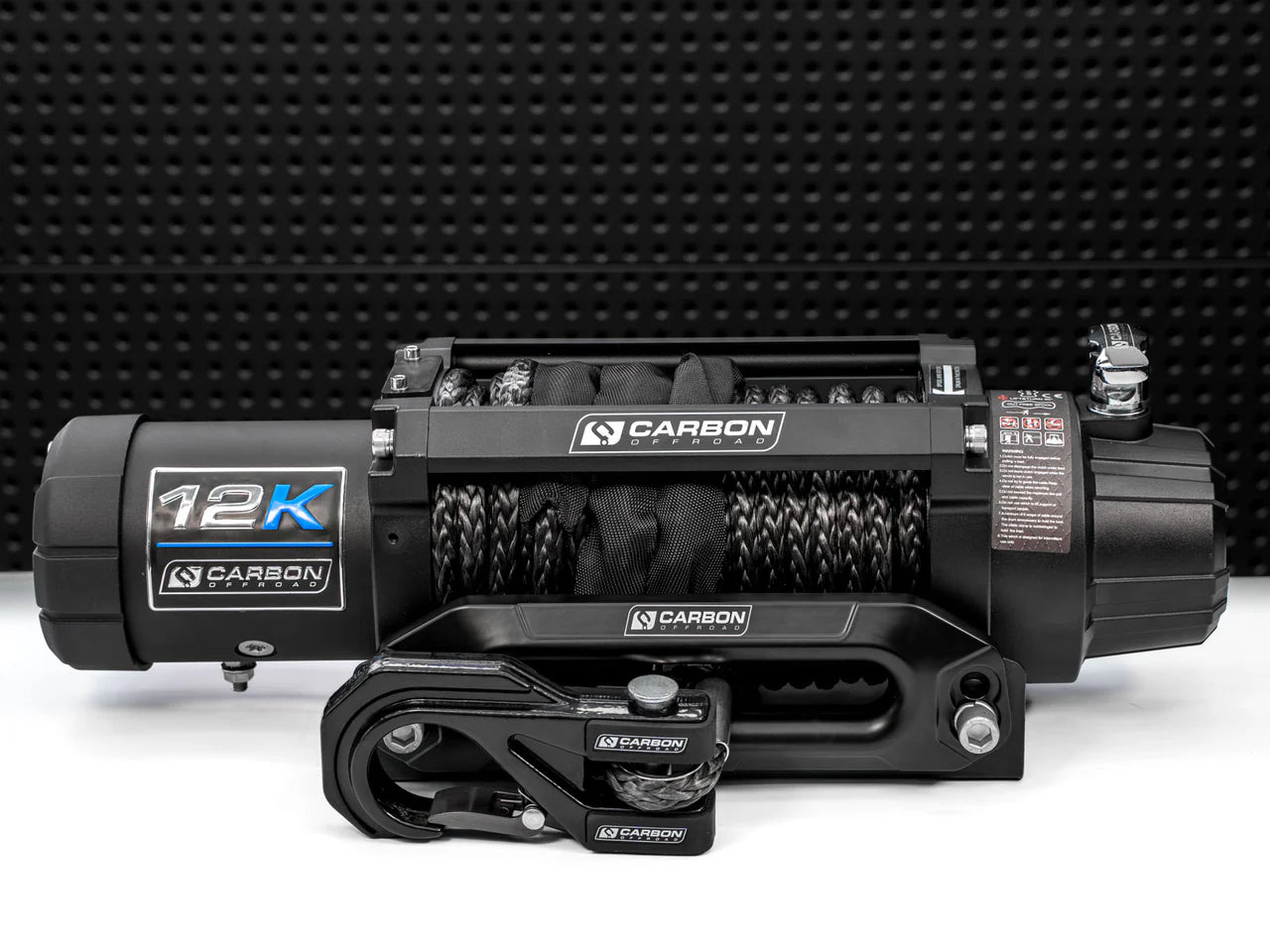

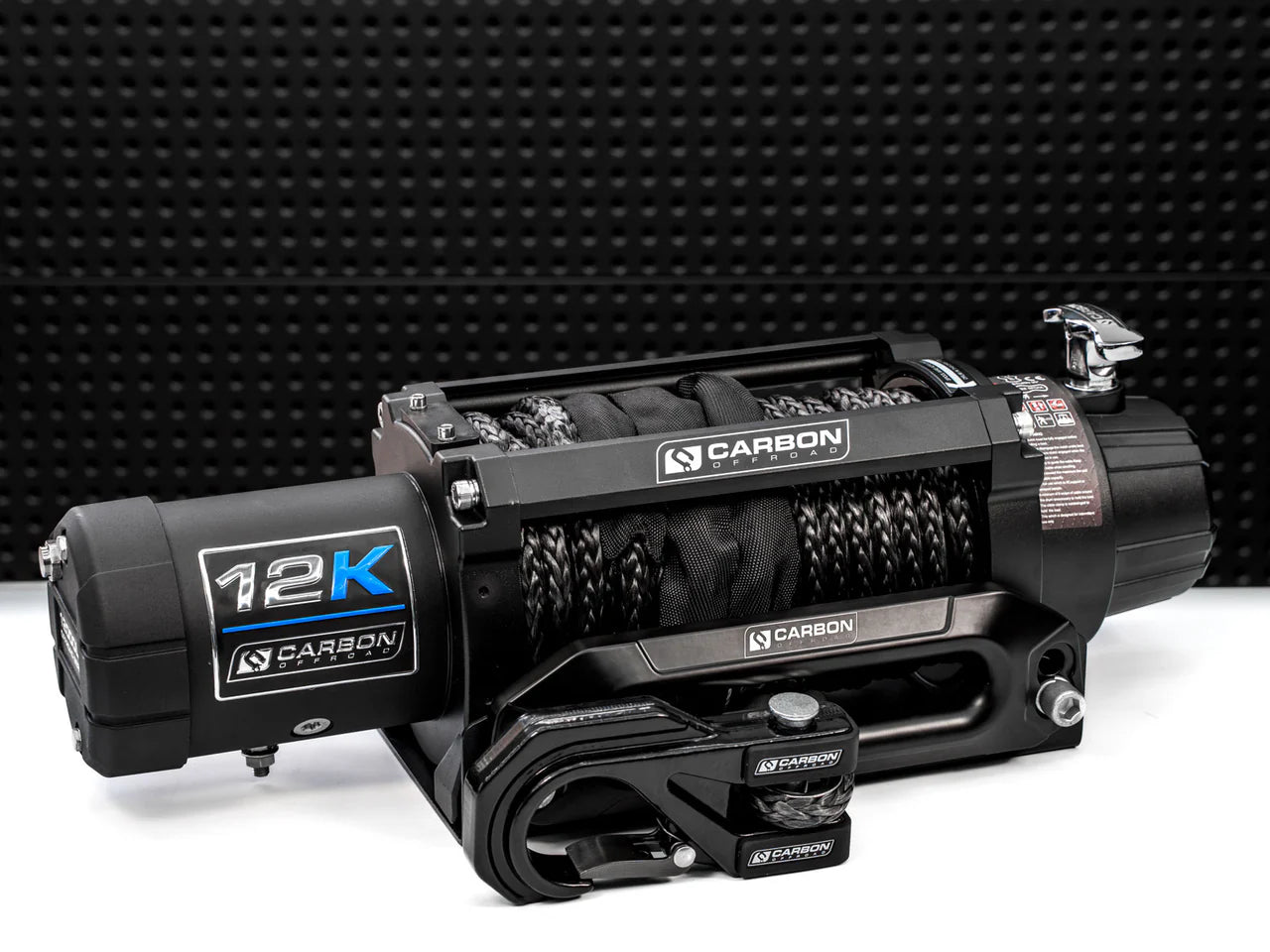

Carbon 12K - 12000lb Winch V3 - Black

Carbon Winch 12k 12000lb Electric 12v 4x4 Winch
Version 3 - Now IP68 Waterproof
5 Year Australian Warranty
Lightest 4x4 Winch

Due to strong customer demand the Carbon Winch range has gone ALL BLACK.

The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4WD winch package boasting many extras to make the installation and use of your winch that much easier.

The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.

IP68 meaning - Ingress Protection
6 - Can withstand dust and dirt
8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.

You want the reliability of a winch that will perform when you need it to, time after time.

The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.

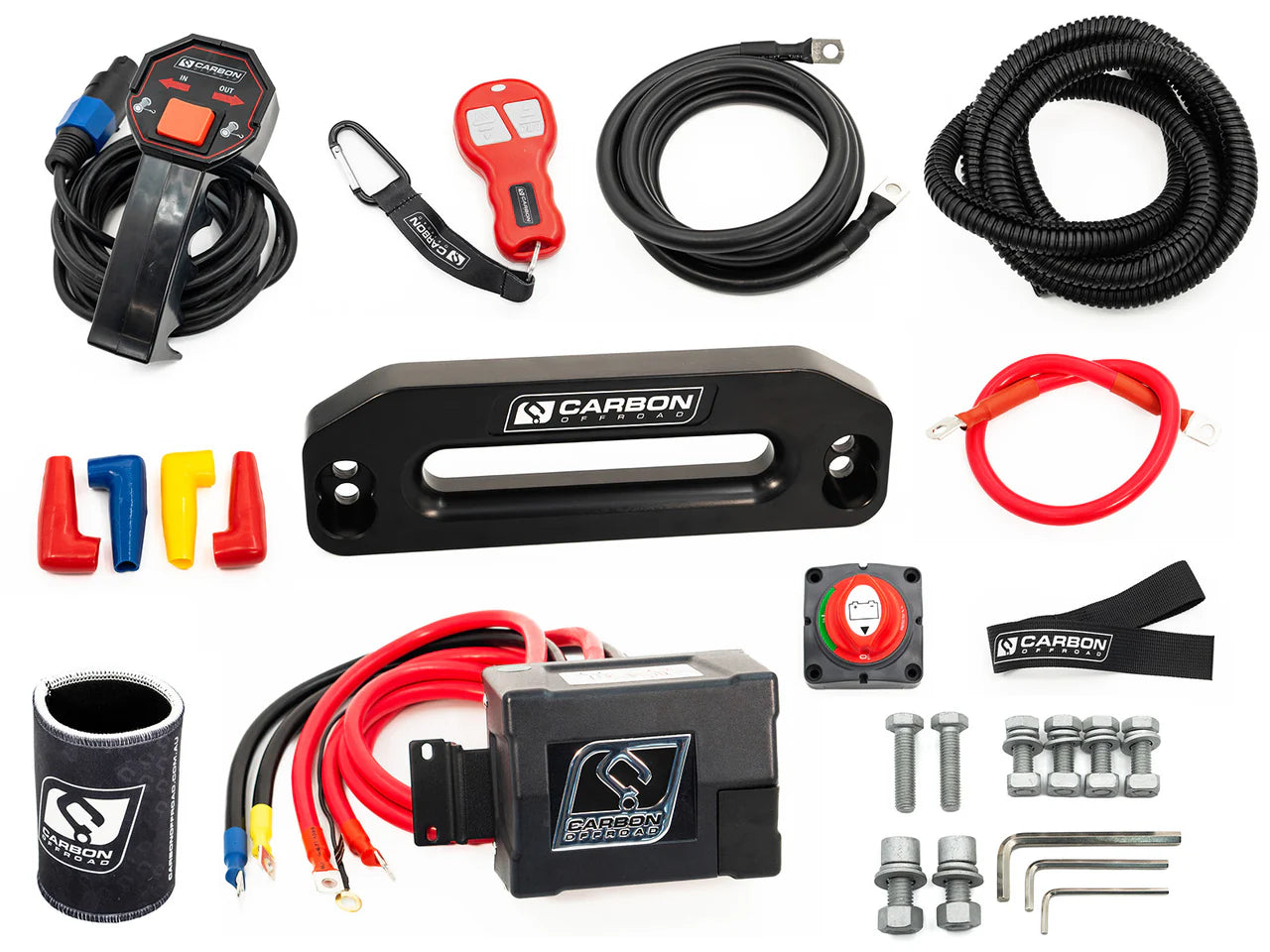

If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.

Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor. Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch  is super lightweight at only 19.0kg

Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.

Technical Features

• Part number: CW-12k
• Rated line pull: 12000 lbs, (5450 kg) single-line
• Motor: 12V DC 6.2HP series wound motor (24V option available)
• Remote Control: Remote Switch, 12ft (3.7m) lead.
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary.
• Gear Ratio: 216:1

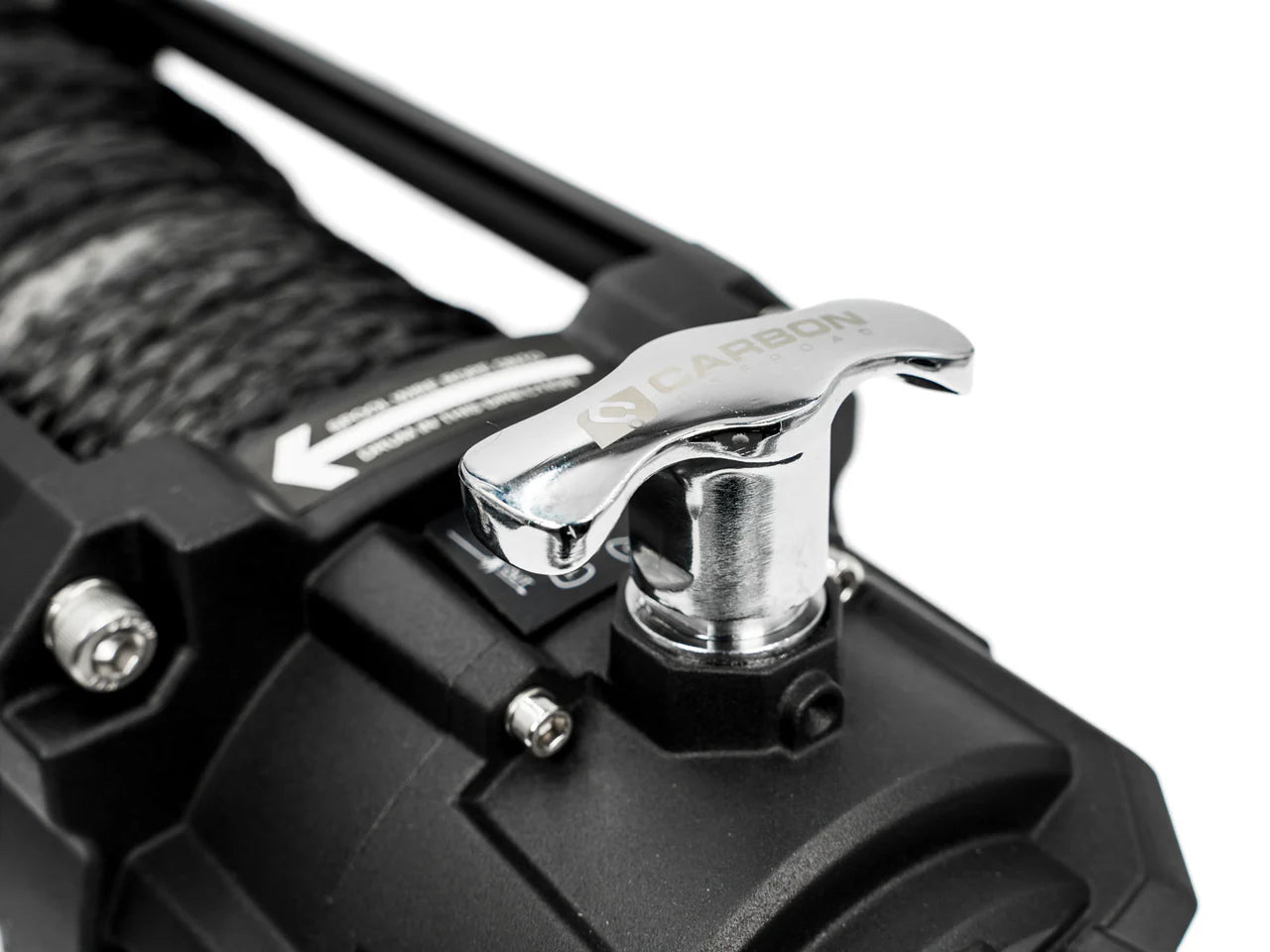

• Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
• Brake: Full load automatic brake installed in the motor housing end plate.
• Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty

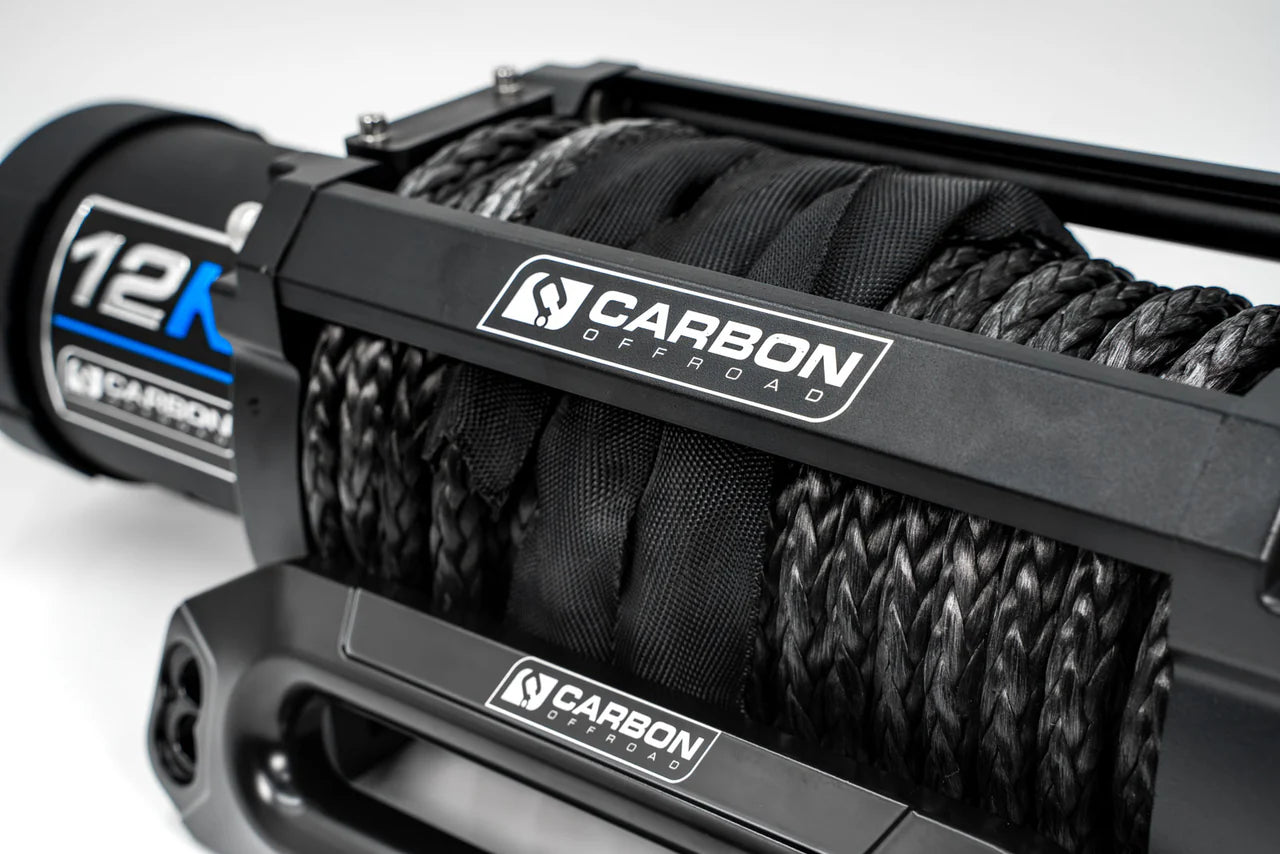

• Synthetic Rope: 24m x 10mm diameter
• Drum Diameter/Length: 64mm x 224mm

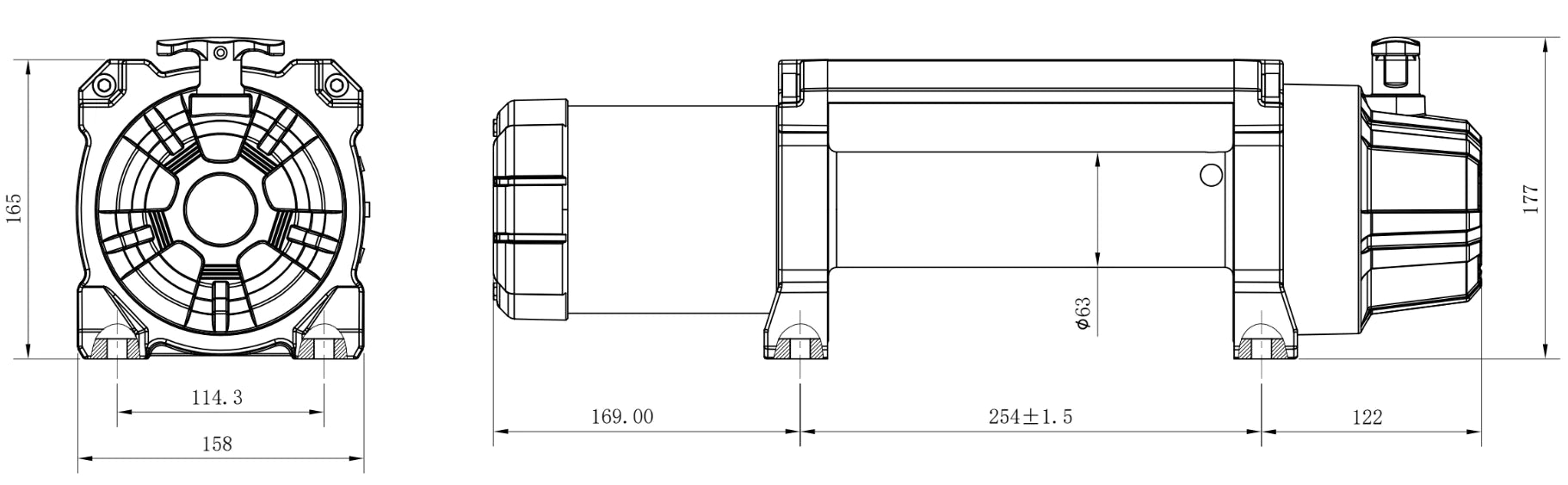

• Mounting Bolt Pattern: 254mm x 114.3mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm)
• Packing Dimensions (L x W x H): 24.2" x 14.5" x 9.8" (615 x 370 x 250mm)
• Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

Performance Specs
